Anchors, Shoes & Shields

Canadian flag

Flagpole anchoring hardware from Flag OutletFlagpole anchoring hardware from Flag OutletFlagpole anchoring hardware from Flag OutletFlagpole anchoring hardware from Flag Outlet
810600

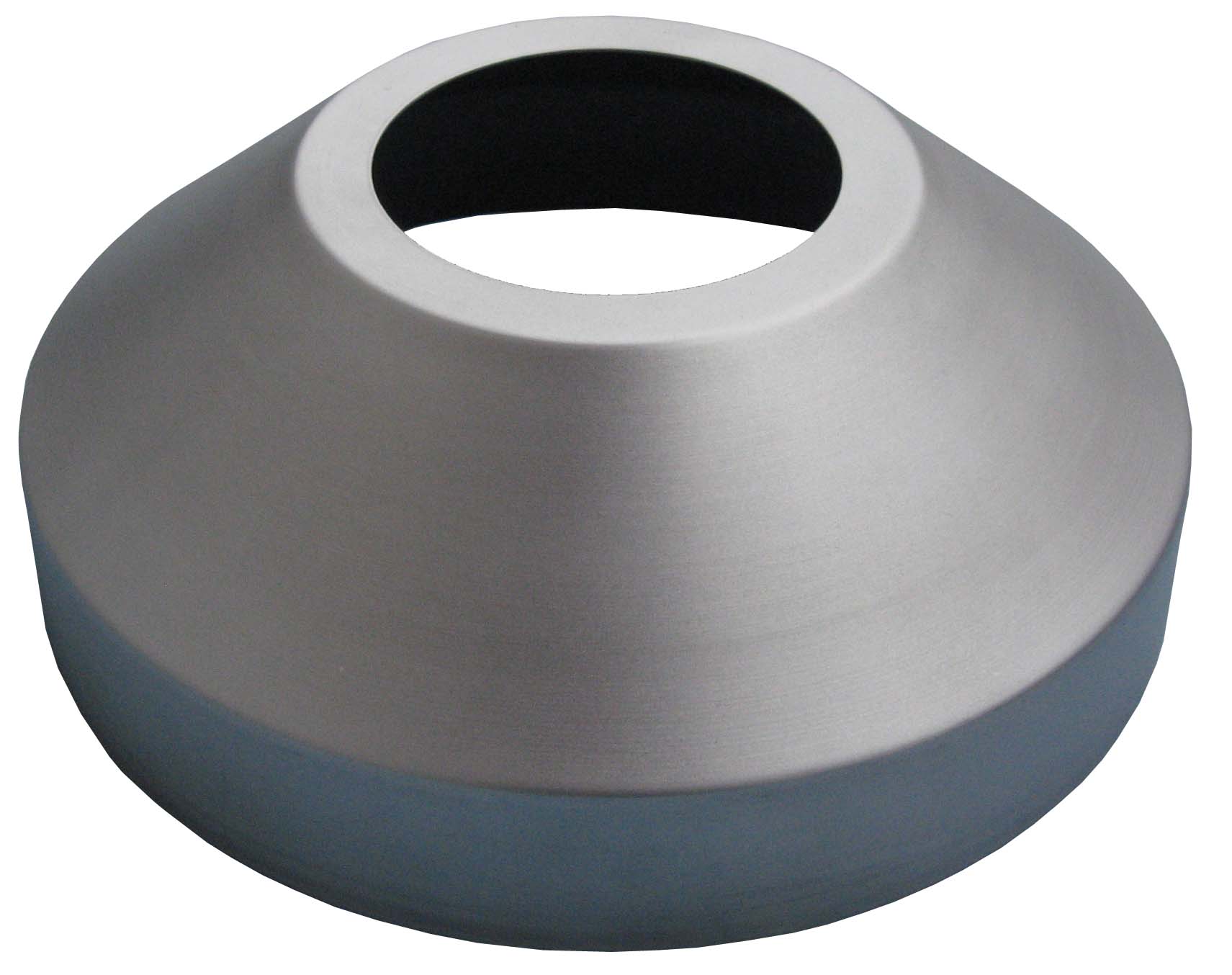

810400
810500

804130
810302
Shields
Item # Size Price
810100 12"x 3" Pole $65
810110 12"x 3-1/2" Pole $65
810200 12"x 4" Pole $65
810300 12"x 5" Pole $65
810302 12"x 5" Pole Overheight $85
810400 16"x 5" Pole $85
810500 16"x 6" Pole $85
810600 16"x 7" Pole $85
804126 16"x 8" Pole $85
804128 16"x 10" Pole $95
804130 16"x 12" Pole $95
Flagpole anchoring hardware from Flag OutletFlagpole anchoring hardware from Flag Outlet
Flagpole anchoring hardware from Flag OutletFlagpole anchoring hardware from Flag Outlet
Misc items
Item # Size Price
813200 Tilt Pin 1/2" S/S $12.00
813300 Tilt Hinge Cone $20.00
814100 Shoe & Anchor, Econo $200.00
815100 Lightning Kit $60.00
Flagpole anchoring hardware from Flag Outlet
Lightning Kit
Shoe
Item # Size Price
811100 Welded Aluminum 3" $160.00
811300 Cast Aluminum 3.5" $160.00
811400 Welded Aluminum 4" $160.00
811500 Welded Aluminum 5" $160.00
Anchor Bolt Assembly
Item # Size Price
814200 Step 25' & 30' (3/4"x 18") $80..00
814300 Step 35' (3/4"x 24") $90.00
814400 Cone 25' & 30' (3/4"x18") $90.00
814500 Cone 35' (3/4"x24") $100.00
814600 Cone 35'x6" (1"x24") $115.00
814610 Cone Tilt 35'x6" (1"x24") $130.00
814750 Cone 40'x7" (1"x30") $140.00
814700 Cone Tilt 40'x7" (1"x30") $160.00
814800 Cone 50'x7" (1"x30") $170.00
Flagpole anchoring hardware from Flag Outlet
Shoe & Anchor Assembly
Exposed Height "A" "B"
25' 42" 14"
30' 42" 16"
35' 42" 18"
40' 54" 18"
Sleeve
Exposed Height "A" "B" "C"
35' 42" 36" -
40' 54" 30" 30"
50' 60" 36" 42"
60' 72" 36" -
70' 84" 48" 42"
80' 96" 48" 48"

The tilt base allows one person to erect the flagpole with ease, saving money on installation and on future maintenance. The 25' and 30' flagpoles are very manageable for one person to handle on their own.

Some installations, the shield will be at ground level. Where other installations will require the shield to be 6" above grade (1' of form-a-tube with 35 MPA concrete).

Step & Cone tapered flagpoles under 50' use an anchor bolt assembly.

60', 70' & 80' flagpoles use a steel galvanized sleeve.

Economy flagpoles use a pvc sleeve that goes into the concrete.

Installation instructions are available here

Foundation Sleeve
Item # Size Price
816100 ABS Tube 3", Econo Pole $20.00
816200 ABS Tube 4", Econo & Step Pole $23.00
817100 Galvanized 5'x10", 40' Cone Pole $160.00
817200 Galvanized 6'x10", 50' Cone Pole $185.00
817300 Galvanized 7'x12", 60' Cone Pole $220.00
817400 Galvanized 8'x12", 70' Cone Pole $245.00
817500 Galvanized 9'x14", 80' Cone Pole $280.00
Ground Screw
Item # Size Price
553100 Ground Screw 1" (Rental Page) $29.95
553110 Ground Screw Metal 39"x3.2" $200.00
553120 Ground Screw w/tilt $350.00

810100
810110

810200
810300<>

Galvanized Sleeve
PVC Tube
Ground Screw
