GROUND MOUNT WINDSOCK HARDWARE

Canadian flag

Windsock frames below are used at regional and private airports, ferry docks, railway, gas plants, etc. They are designed to be used with a 3" or 3.5" Poles.

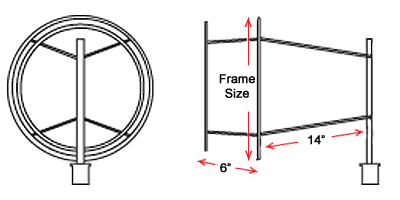

120 v frame 120 v Line Drawing

Windsock frames rotate in the wind, using 2-bearings for smooth operation and a bushing that fits into your pole. (Standard size bushing fits 3" poles).

Aluminum frames are made of solid round aluminum bar:

  • 12" Frame – 1/4" dia alum bar
  • 18" Frame – 5/16" dia alum bar
  • 24" Frame – 3/8" dia alum bar
  • 36" Frame – 7/16" dia alum bar

3" and 3.5" Windsock poles can be used with a tilt base to facilitate replacement of windsock.

Windsock Frames
Item # Description Price
502200 12"-3" Alum $290
502350 18"-3" Alum $340
502450 24"-3" Alum $440
502550 36"-3" Alum $490

Top Section Alum Poles
Item # Description Price
860950 5'x 3"x 125" $65.55
861000 10'x 3"x .125" $129
861100 15'x 3"x .125" $175
861200 20'x 3"x .125" $240
861300 25'x 3"x .125" $271

Bottom Section Alum Poles
Item # Description Price
861350 5'x 3.5"x .216" $110
861400 10'x 3.5"x .216" $212
861500 15'x 3.5"x .216" $318
861600 20'x 3.5"x .216" $424

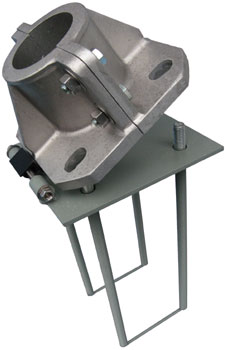

Anchor and Cast Shoe
Anchor and Cast Shoe

All poles are 6063 T-6 aluminum with anodized finish.

These poles and windsock frames can be installed on walls.
Note: Windsock Wall Mount Page.

Windsock pole can be Straight or Stepped.

15' x 3.5" with 10' x 3" offers more strength than straight 25' pole.

The size of your windsock will also determine the correct combination.

Poles Parts
Item # Description Price
810100 Alum Shield 12"x 3" $65
810110 Alum Shield 12"x 3.5" $65
811100 Tilt Shoe Base Alum 3" $160
811300 Tilt Shoe Base Alum 3.5" $160
814200 Anchor Bolt Step 3/4"x17" $99

Aluminium Shield
Aluminum Shield

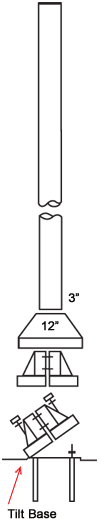

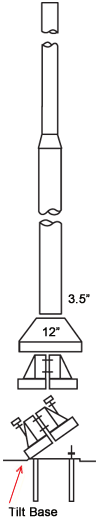

Windsock Step Pole line drawing Windsock Pole line drawing
